Improved Tanpura Tone
- Raagini Digital is an Electronic Tanpura that delivers high-quality Tanpura sound using the latest cutting edge technology.

Capacitive Touch Keyboard
- The New Raagini Tambura is equipped with state of the art Capacitive touch keyboard.

Original Check Button
- This confirms that you have an Original Raagini Digital by Sound Labs.

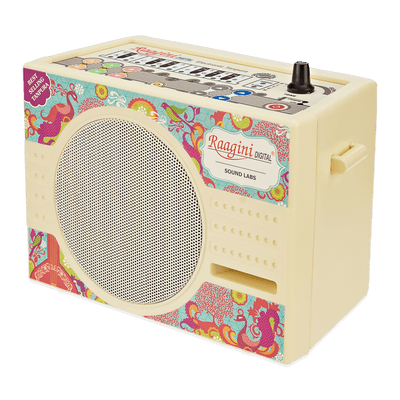

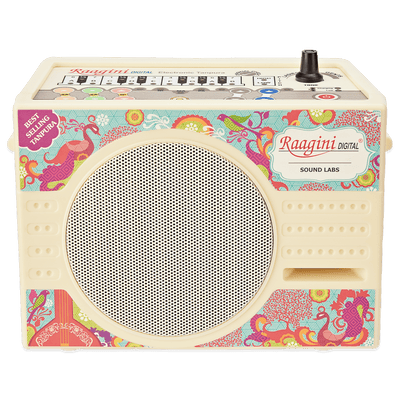

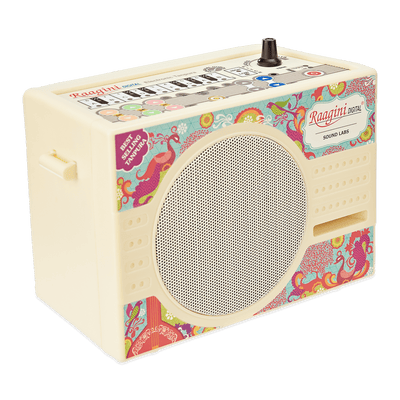

Hexagonal Shape Cabinet
- The 6 side cabinet of Raagini Digital is a unique design registered shape that improves the sound quality & gives it a unique identity.

Digital Setting
- Functions like On/Off, Pitch, Fine Pitch, Volume, Tempo are all digitally measured and set for better accuracy.

Light Weight & Robust ABS Cabinet
- 760 Grams is the weight of the Raagini Tambura, this makes it 35 percent lighter than its metal cabinet predecessor.

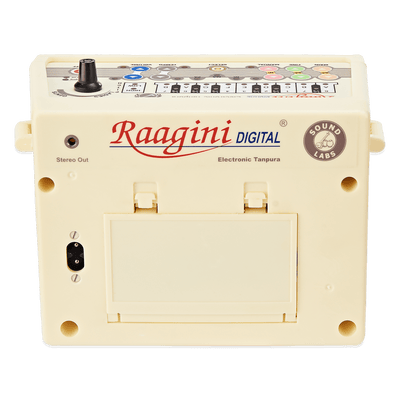

Auxiliary Stereo Out
- The new Raagini Digital has the improved Auxiliary Out to connect to your music system or Public Address (PA) system during concerts.

AAA Battery with In-Built Charger
- 8 AAA cells are all that is required & with the in-built battery charger you don’t have to worry anymore if you use rechargeable cells.

SMPS, 90V AC to 250V AC
- Raagini Tanpura’s in-built SMPS, Universal Power Supply makes it possible to run the instrument anywhere in the world with its dynamic input power range of 90V AC to 250V AC.

Pitch Range in Excess of 1 Octave
- Raagini Tanpura’s large pitch range spans over an octave covering from A to the B of the next octave. This makes it very versatile to tune with the vocalist as well as the instrument.

Pancham, Madhyam & Nishad
- The Raagini Digital comes with easy switch operation for the selection of accurately pre-tuned Pancham, Madhyam & Nishad.

Hindustani & Carnatic Playing Styles
- Raagini Tanpura is set to play Pa, Sa, Sa Sa (Kharaj) ( 6 Matras, Carnatic Music Style. ) Pressing select switch while switching on Raagini Digital Tanpura sets it to play Pa, Sa, Sa Sa (Kharaj) (5 Matras, Hindustani Music Style.)

Manual Nishad Tuning
- In the case, if Nishad, Raagini Digital Tanpura also allows you to manually tune the Nishad to adjust to your special needs.

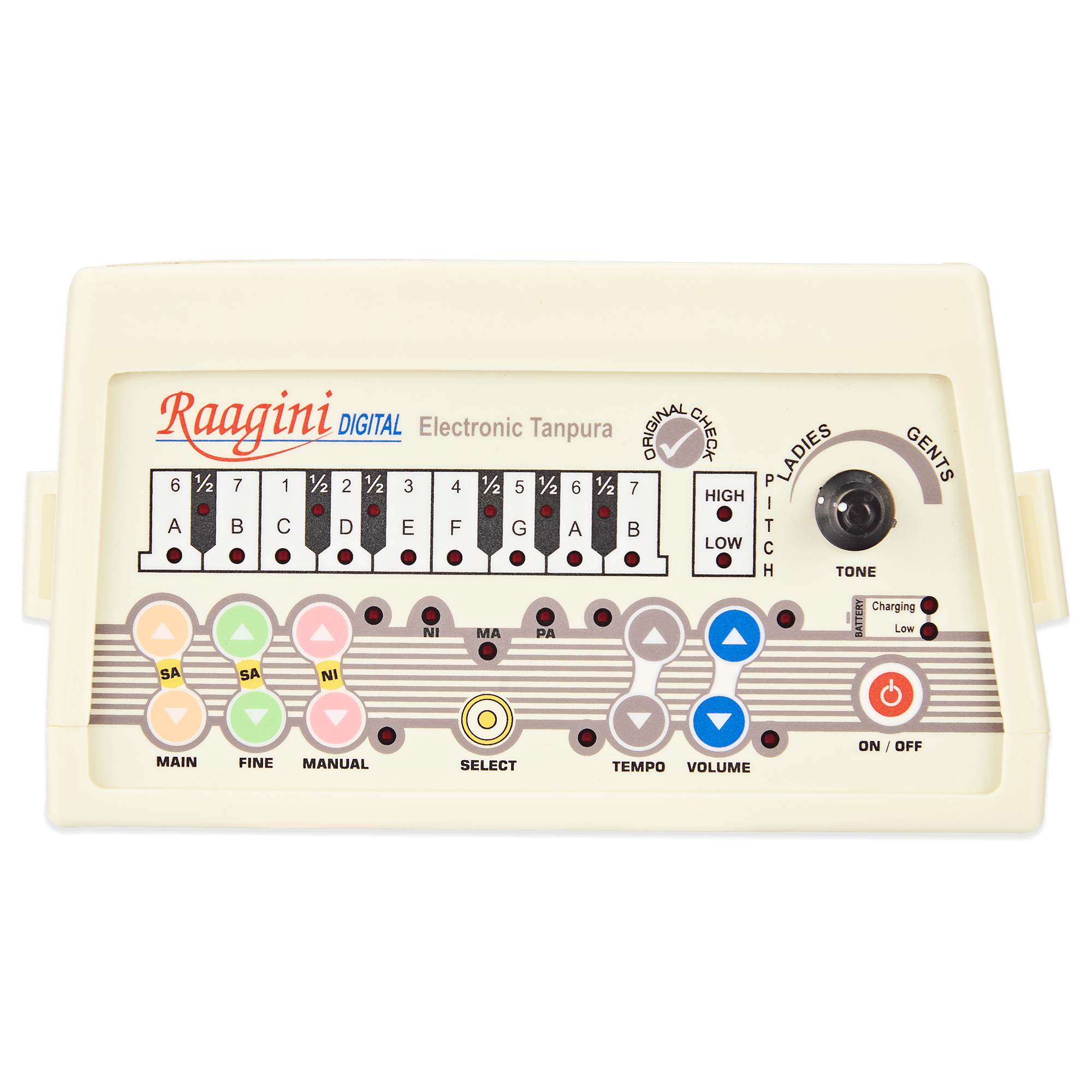

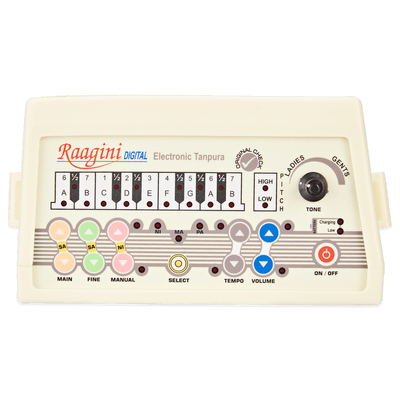

Harmonium Like Display
- Raagini Digital Tanpura comes with a display that represents the keyboard of the harmonium to specially aid novices in setting the swar without any hassle at all.

Auto memory
- The memory function of this electronic Tanpura helps retain your last selection even when the power is switched off. (Including that of fine-tuning)

Carry Bag
- The Raagini Digital comes in an easy to carry specially padded nylon bag.

Preferred Tanpura
- Since its launch, the Raagini Digital has gone on to become the most preferred electronic Tanpura machine of Artists, Gurus & Students alike for both practice & performances.

ORIGINAL CHECK
- Raagini Digital is a registered brand and instrument of Sound Labs.

- Press the Original Check button for one second and the announcement "Raagini from Sound Labs" will be audible. This confirms that you have an Original Raagini Digital by Sound Labs.

- Beware of Counterfeits, Duplicates and Fake Raagini Digital floating in the stores.

- Note: Doing this will reset the instrument to default factory settings.

ON/OFF
- Plug in the mains cord; two pin male plug into your AC wall power supply & female socket in the back of the instrument.

- Switch on Raagini Digital by pressing the On / Off button

- Note: Pressing the On / Off button again switches off the instrument.

VOLUME
- The volume can be increased by pressing the Up button and decreased pressing Down button. Each press of the button will be represented by the momentary glowing of the corresponding LED.

- Note: On reaching the maximum or minimum Volume levels the corresponding LED will glow steady.

PITCH
- Select your required Sur (Note) using the SA Main button set. The SA Main Up & Down buttons helps you navigate between the lowest & the highest Sur (i.e. main notes).

- The Sur indication is arranged like Harmonium / Piano Keyboards for quick reference and the Sur selected is represented by its corresponding LED in the display above.

- Note: The first LED indicates ' MandraSafed 6 = A = 6 Kattai ' (Lowest Sur) and the last LED indicates ' Safed 7 = B = 7 Kattai ' (Highest Sur 2nd octave)

FINE PITCH
- To further fine-tune press SA Fine Up or Down button depending upon your requirement. Operate the Up or Down button until the required Sur is heard.

- Note: SA Fine allows selection in-between two main notes (i.e. in-between C & C# by pressing up button and in-between C & B by pressing down button.) It is also indicated by pitch high or pitch low LED glowing.

SELECT
- The Select button helps you in the selection of PA, MA, NI or only SA style of playing on a rotational basis.

- Note: The corresponding LED of the PA, MA or NI will glow. And when only SA selected no LED will glow.

NI MANUAL
- Manual Nishad can be tuned by pressing either the manual NI Up or Down button. The range for manual Nishad adjustment is one Sur up on the higher side and one Sur down on the Lower side (i.e. If D is selected as Main Sa, Nishad will be adjustment from D to D# on the higher side and D to C# on the lower side.)

- Note: Manual Nishad can only be tuned when the LED of the select NI is On.

TONE
- Set the required tone by turning the Tone knob

- Note: Generally for lower Sur Tone is set to Male & for higher Sur towards Female.

STYLE
- Raagini Digital by default is set to play 6 Matra Style. Pa, Sa, Sa, Sa (Kharaj) (Carnatic Music Style.)

- To play 5 Matra Style, first press select button and then switch on the instrument using the Power ON/OFF button, then it will play Pa, Sa, Sa, Sa (Kharaj) (Hindustani music style.)

TEMPO
- Raagini Digital is automatically calibrated to play at the best Tempo to the selected Sur, but as per personal preference the Tempo can be increased by pressing the Up button or decreased pressing Down button. Increase or decrease in tempo will be indicated by the glowing of the corresponding LED.

- Note: When on default Tempo both LED’s will be off.

BATTERY (Caution:- Do NOT Charge Dry Cells)
- Raagini Digital has an inbuilt battery charger which automatically charges batteries while the instrument is connected to a power source.

- Please use only rechargeable AAA size battery.

- While the Battery is being charged the Battery Charging LED will glow.

- In the event of the battery charge being low, the Low Battery LED will glow; thereby prompting you to connect the instrument to main AC power supply for charging the batteries.

Product Spec
- Weight (0.900 g), Length (18 cm), Height (15 cm) & Width (9 cm)

1 Year Warranty
- Raagini Digital Instrument is warranted against defects arising out of faulty of defective materials or workmanship for a period of one year from the date of purchase.
