Original Tanpura Tone
- Raagini Plus is the latest electronic Tanpura machine that delivers high-quality original Tanpura sound using cutting-edge technology.

Individual Volume Control
- Raagini Plus is the only realistic-sounding Electronic Tanpura with individual volumes for all four strings (PA, Jodi SA 1, Jodi SA 2 & Kharaj). The volume of these strings is automatically adjusted but can also be changed per the user’s requirement.

Capacitive Touch Keyboard
- Raagini Plus, with its cutting-edge technology, has incorporated the feather touch keyboard. It has no knobs or switches, improving accuracy and eliminating transit damage and corrosion.

ABS Plastic Case
- Raagini Plus is made from ABS plastic, giving it a sleeker look and protecting it from the peninsula’s climatic wear & tear.

SMPS, 90V AC to 250V AC
- Raagini Plus Tanpura’s in-built SMPS, Universal Power Supply, makes it possible to run the instrument anywhere in the world with its dynamic input power range of 90V AC to 250V AC.

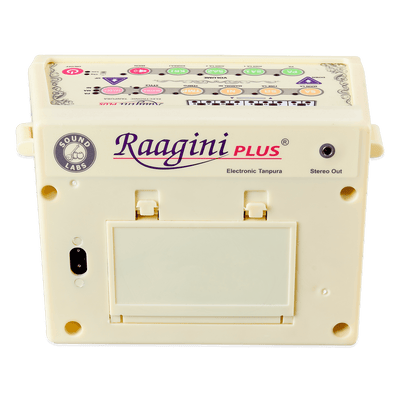

Auxiliary Stereo Socket
- Raagini Plus Electronic Tanpura can be connected to a music system using the stereo auxiliary socket.

Hindustani & Carnatic Playing Styles
- With the touch of the Style Button, Raagini Plus will play either PA, SA, SA SA (Kharaj) ( 6 Matra, Carnatic music style) or PA, SA, SA, SA (Kharaj) (5 Matra, Hindustani style)

Accurate Pitch Range over 1 Octave
- Raagini Plus Tanpura’s super stable, accurate, and digital pitch range spans over an octave, covering from A to the B of the next octave. This makes it very versatile to tune with the vocalist and the instrument.

Pancham, Madhyam & Nishad
- The Raagini Plus, Electronic Tanpura machine, comes with an easy switch to the operation for the selection of accurately pre-tuned Pancham, Madhyam & Nishad.

Manual Nishad Tuning
- If Nishad, the Raagini Plus Tanpura box also allows you to tune the Nishad to adjust to your unique needs manually.

Harmonium like Display

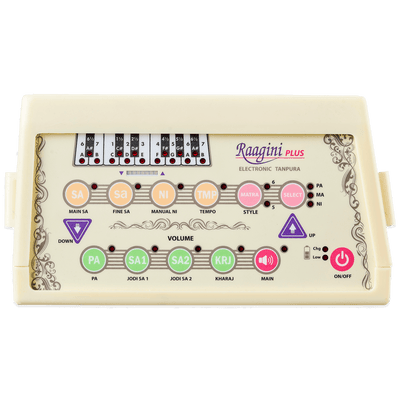

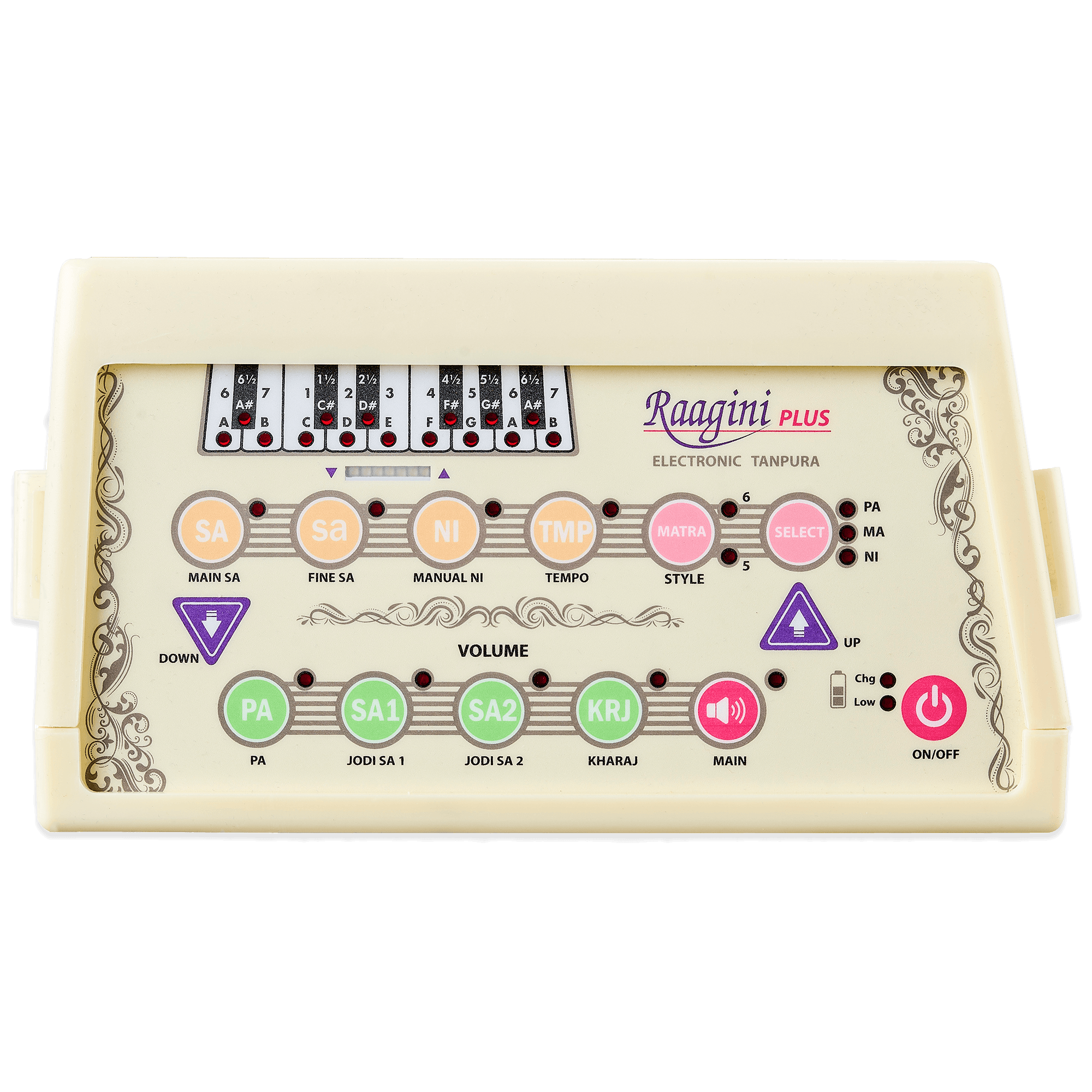

- Raagini Plus Tanpura comes with a display that represents the keyboard of the harmonium to specially aid novices in setting the Sur without any hassle.

Fine Tuning
- Raagini Plus Tanpura has digital fine-tuning that works with immense precision to tune with your instrument.

In-Built Battery Charger
- The inbuilt battery charger of the Raagini Plus charges the rechargeable battery even when the electronic Tanpura is playing; the Charging LED displays this. The Low Battery LED switches automatically when the battery is low on charge.

Auto Memory
- The memory function of Raagini Plus helps retain your last selection even when the power is switched off. (Including that fine-tuning)

Embroidered Carry Bag
- The Raagini Plus comes in a durable carry bag for daily use and travel.

ON/OFF
- Plug in the mains cord; two pin male plug into your AC wall power supply & female socket in the back of the instrument.

- Switch on the instrument by pressing the On / Off Switch

- Note: Pressing the On / Off switch again turns the instrument off.

MAIN SA
- Select your required Sur (Note) using the Main SA Switch Use the Decrement & Increment arrow buttons to navigate from the lowest to the highest Sur (i.e. main notes). The Sur indication is arranged like Harmonium / Piano Keyboards for quick reference and the Sur selected is represented by its corresponding LED in the display above.

- Note: The first LED indicates ' Mandra Safed 6 = A = 6 Kattai ' (Lowest Sur) and the last LED indicates ' Safed 7 = B = 7 Kattai ' (Highest Sur 2nd octave)

FINE SA
- You can further fine tune your Sur by using the Fine SA key. Use the Decrement & Increment arrow buttons to adjust between Sur.

- Note: Fine SA allows very very fine pitch adjustment in-between two main notes (i.e. in-between C & C# by pressing Increment arrow switch and in-between C & B by pressing =Decrement arrow switch.

- Note: The same is indicated by the bar graph LED. LED at centre means that the main SA is at its natural note. Pressing the Decrement key moves the bar graph LED to left side indicating the sur to be lower than the natural note and pressing Increment key moves the bar graph LED to right side of the centre indicating that the sur is higher than the natural note.

MAIN VOLUME
- To set the volume of the instrument press the Main Volume switch followed by the Decrement or Increment arrow switch to either Decrease or Increase the volume respectively.

- Note: The same is indicated by the bar graph LED. LED at left hand side means minimum volume and bar proceeding to the right hand side denotes an increase in volume. Maximum volume is indicated by the bar traveling full right and all LEDs glowing in the bar.

- Raagini Plus also allows you to set the volume of each individual string of the Tanpura as per your requirement.

PA VOLUME
- To set the volume of the PA press the PA Volume switch followed by the Decrement or Increment arrow switch to either Decrease or Increase the volume respectively.

- Note: The same is indicated by the bar graph LED. LED at left hand side means minimum volume and bar proceeding to the right hand side denotes an increase in volume. Maximum volume is indicated by the bar traveling full right and all LEDs glowing in the bar.

JODI SA1 VOLUME
- To set the volume of the Jodi SA 1 press the Jodi SA 1 Volume switch followed by the Decrement or Increment arrow switch to either Decrease or Increase the volume respectively.

- Note: The same is indicated by the bar graph LED. LED at left hand side means minimum volume and bar proceeding to the right hand side denotes an increase in volume. Maximum volume is indicated by the bar traveling full right and all LEDs glowing in the bar.

JODI SA2 VOLUME
- To set the volume of the Jodi SA 2 press the Jodi SA 2 Volume switch followed by the Decrement or Increment arrow switch to either Decrease or Increase the volume respectively.

- Note: The same is indicated by the bar graph LED. LED at left hand side means minimum volume and bar proceeding to the right hand side denotes an increase in volume. Maximum volume is indicated by the bar traveling full right and all LEDs glowing in the bar

KHARAJ VOLUME
- To set the volume of the Kharaj press the Kharaj Volume switch followed by the Decrement or Increment arrow switch to either Decrease or Increase the volume respectively.

- Note: The same is indicated by the bar graph LED. LED at left hand side means minimum volume and bar proceeding to the right hand side denotes a increase in volume. Maximum volume is indicated by the bar traveling full right and all LEDs glowing in the bar.

SELECT
- Select switch helps you in the selection of PA, MA, Ni or only SA style of playing

- Note: The corresponding LED of the PA,MA or NI will glow. When only SA selected no LED will glow.

STYLE
- The Style switch helps you in the selection of either 5 Matra or 6 Matra style of playing. In 5 matra style there is no pause after the first string being played ie PA, MA or Ni

- Note: The corresponding LED of the 5 Matra or 6 Matra will glow.

MANUAL NI
- Nishad can be tuned manually by pressing the Manual NI switch. Use the Decrement & Increment arrow buttons to reduce or increase Nishad pitch.

- Note: The range for Nishad adjustment is one Sur up on the higher side and one Sur Down on the Lower side ( i.e. If D is selected as Main Sa, Nishad will be adjustment from D to D# on the higher side and D to C# on the lower side. )

- Note: Indication is by the bar graph LED. LED at centre means that the main SA is at its natural note. Pressing the Decrement key moves the bar graph LED to left side indicating the sur to be lower than the natural note and pressing Increment key moves the bar graph LED to right side of the centre indicating that the sur is higher than the natural note.

TEMPO
- To manually adjust the tempo, press the Tempo switch followed by the Decrement or Increment arrow switch to either Decrease or Increase the tempo respectively.

- Note: The same is indicated by the bar graph LED. LED at centre means that the tempo is at default setting. Pressing the Decrement key moves the bar graph LED to left side indicating the tempo to be slower and pressing Increment key moves the bar graph LED to right side of the centre indicating that the tempo is faster

- Note: Raagini Plus is automatically calibrated to give the best tempo to the selected Sur (Sa Main).

BATTERY(Caution:- Do NOT Charge Dry Cells)
- Raagini Plus has an inbuilt battery charger which automatically charges batteries while the instrument is playing. Please use only rechargeable AAA size battery.

- While charging batteries the Battery Charging LED will glow.

- In the event of the battery charge being low, the Low Battery LED will glow; thereby prompting you to connect the instrument to main AC power supply for charging the batteries.

Product Spec.
- Weight (0.800 g), Length (18 cm), Height (14 cm) & Width (10 cm)

1 Year Warranty
- Raagini Plus Instrument is warranted against defects arising out of faulty, defective materials or workmanship for one year from the date of purchase.
